Cadre

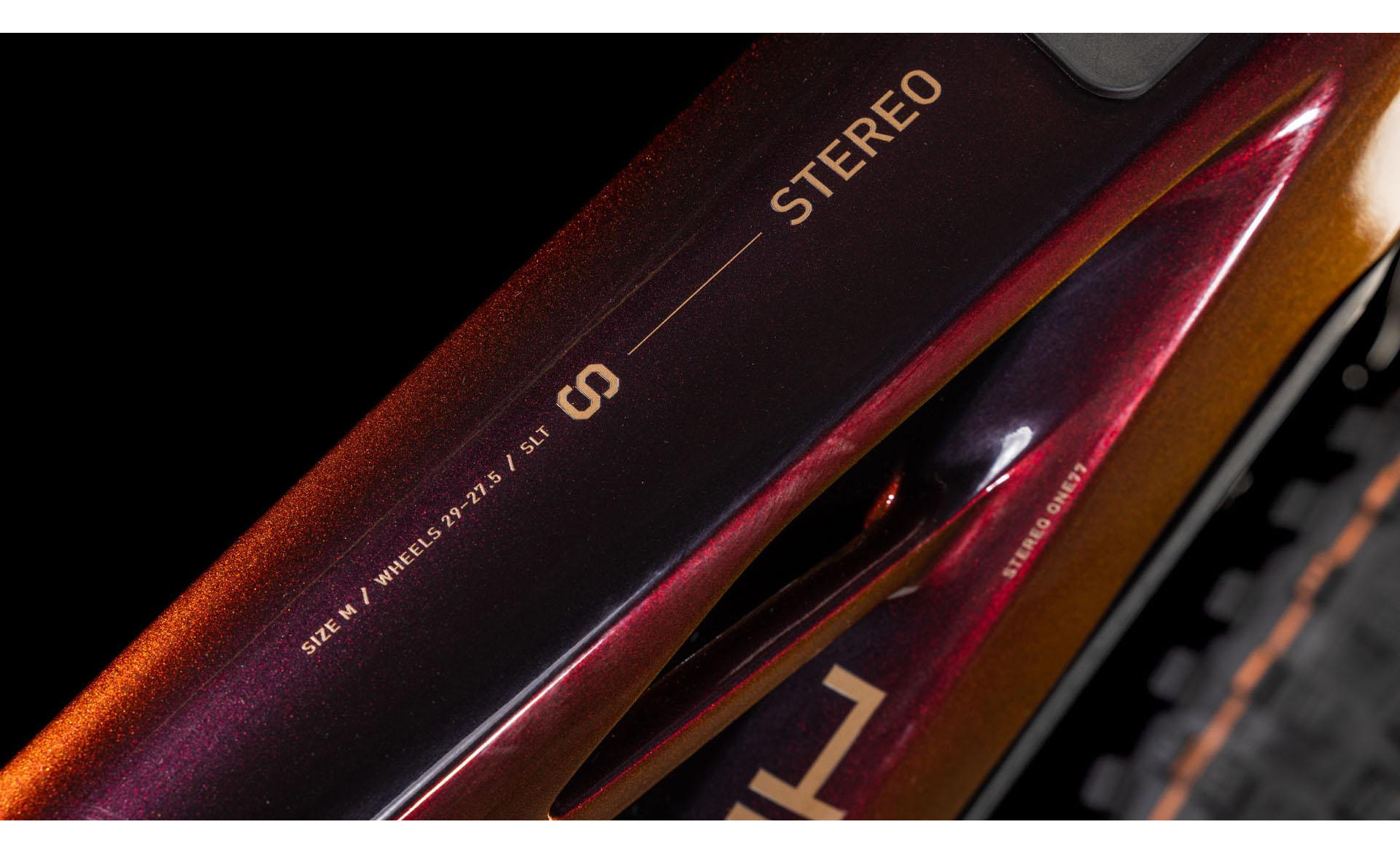

- Cadre

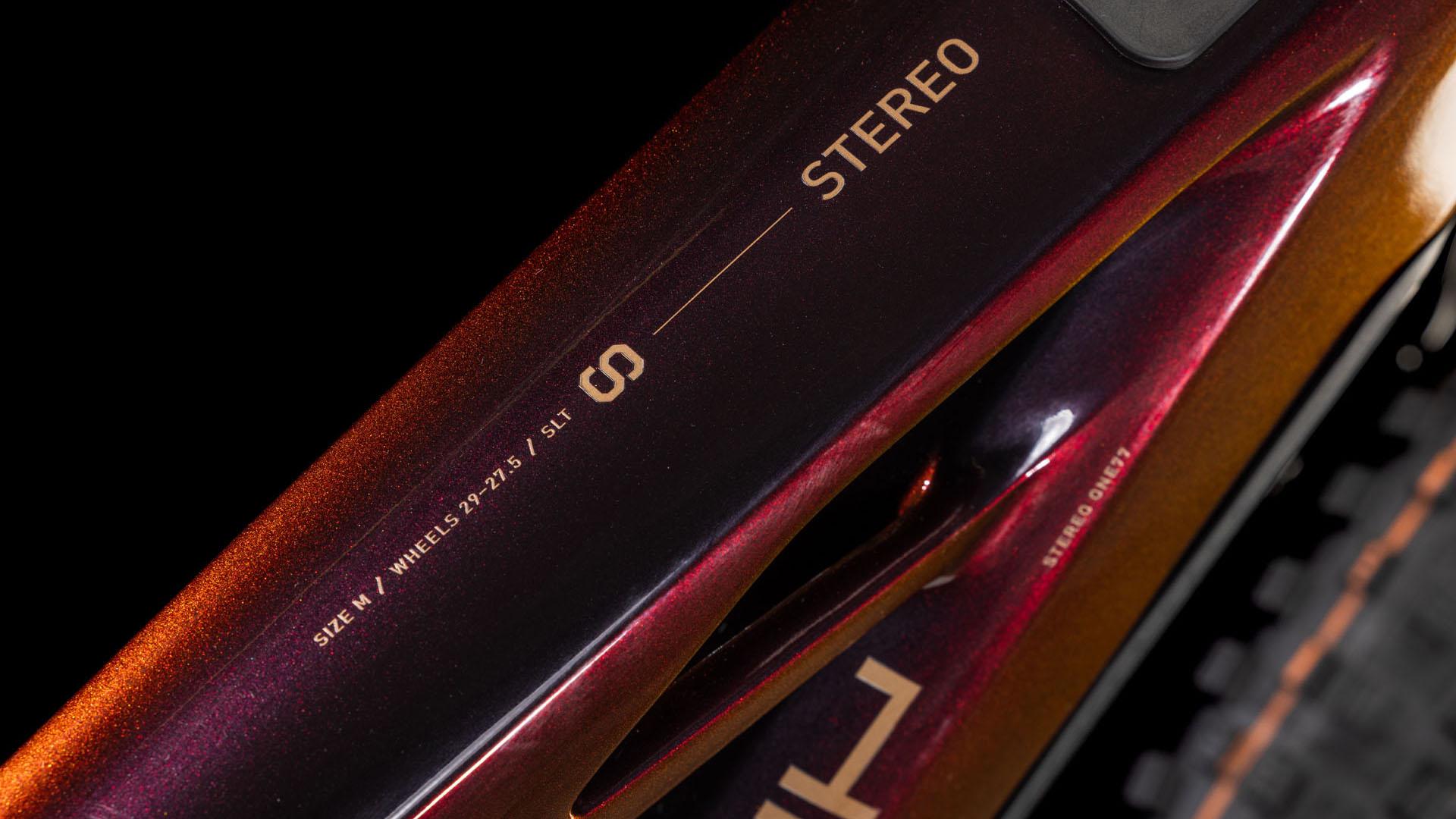

- C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
- Couleur
- Solareclipse´n´bronze
Suspensions
- Fourche

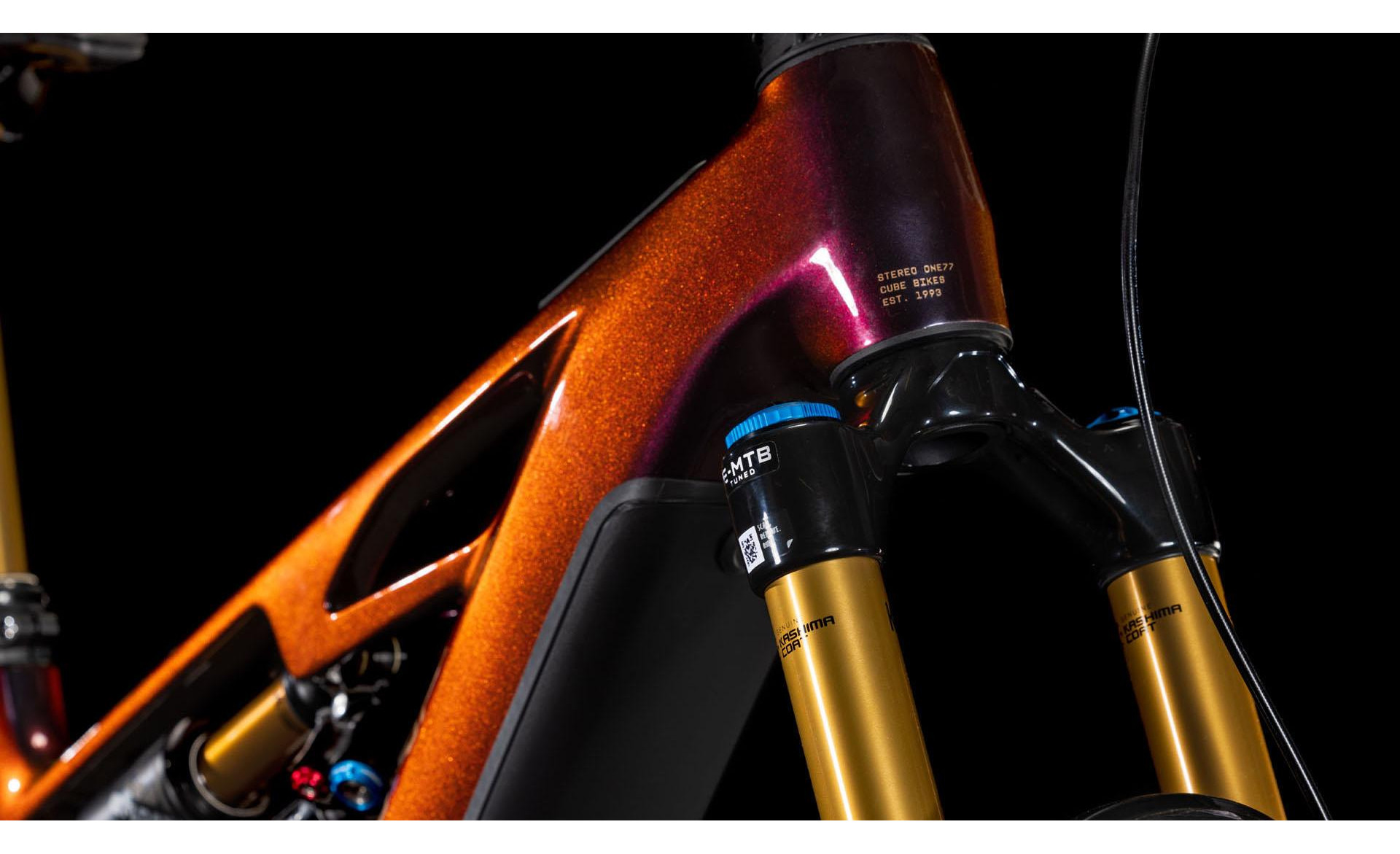

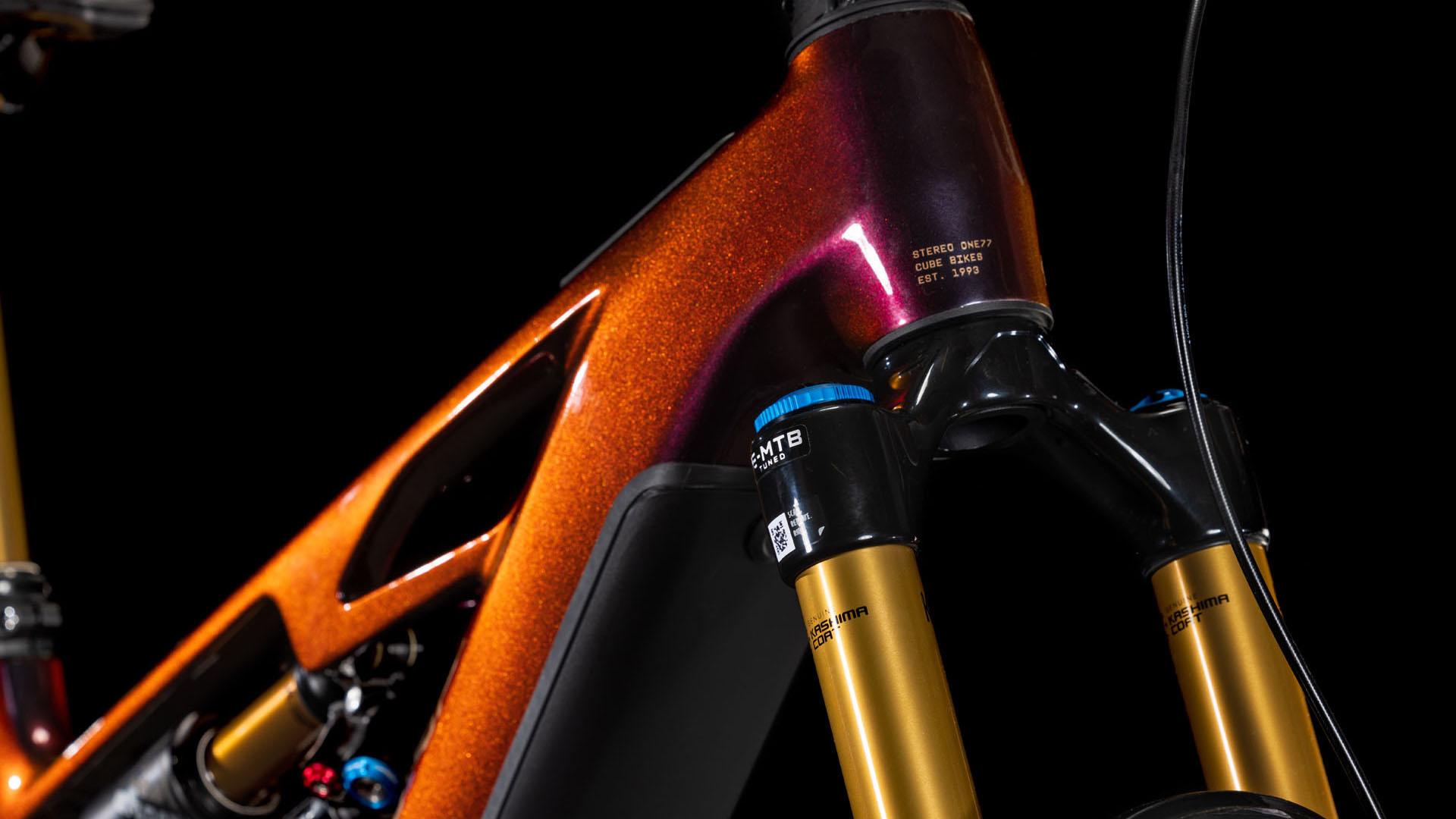

- Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm, Kashima Coated

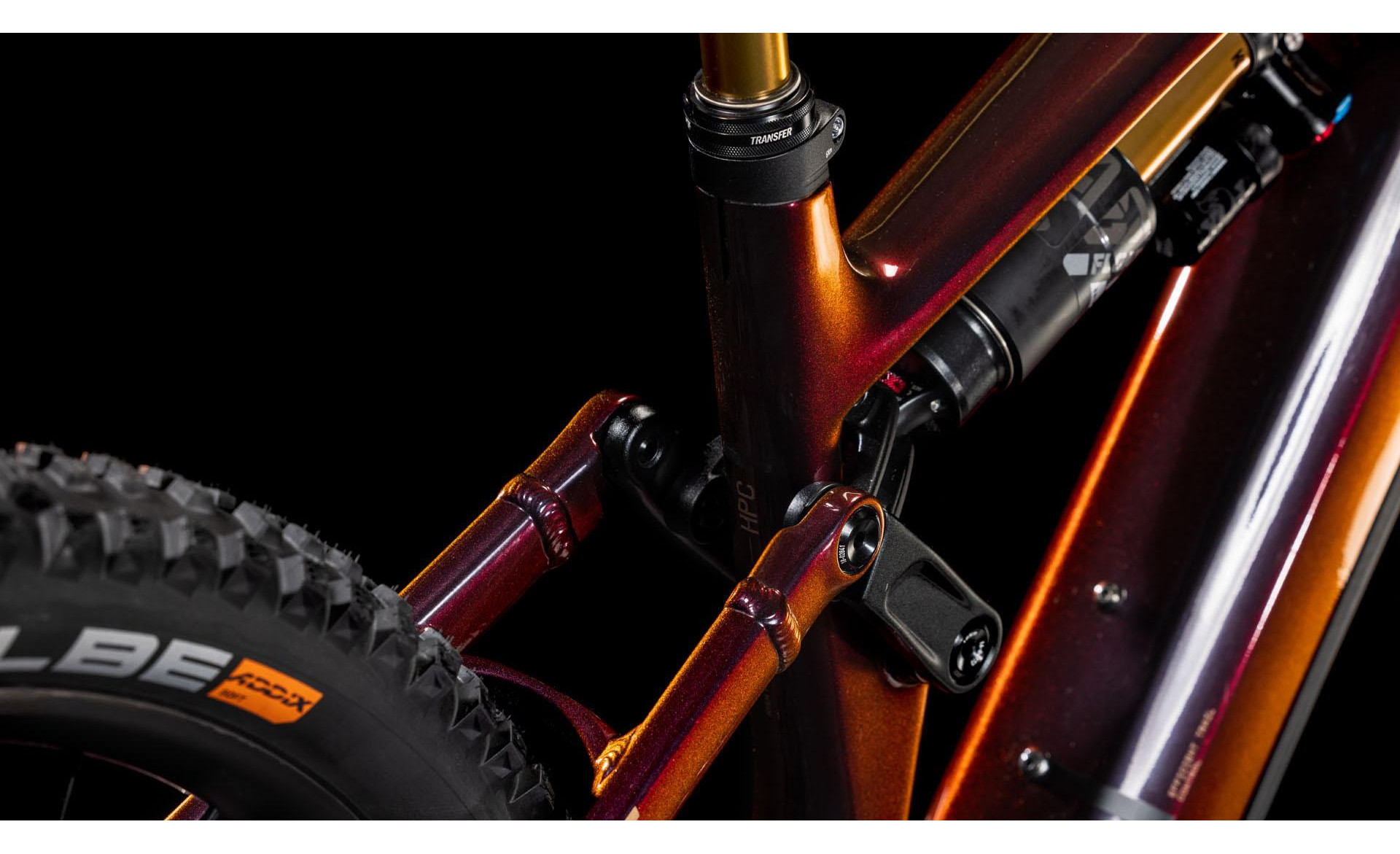

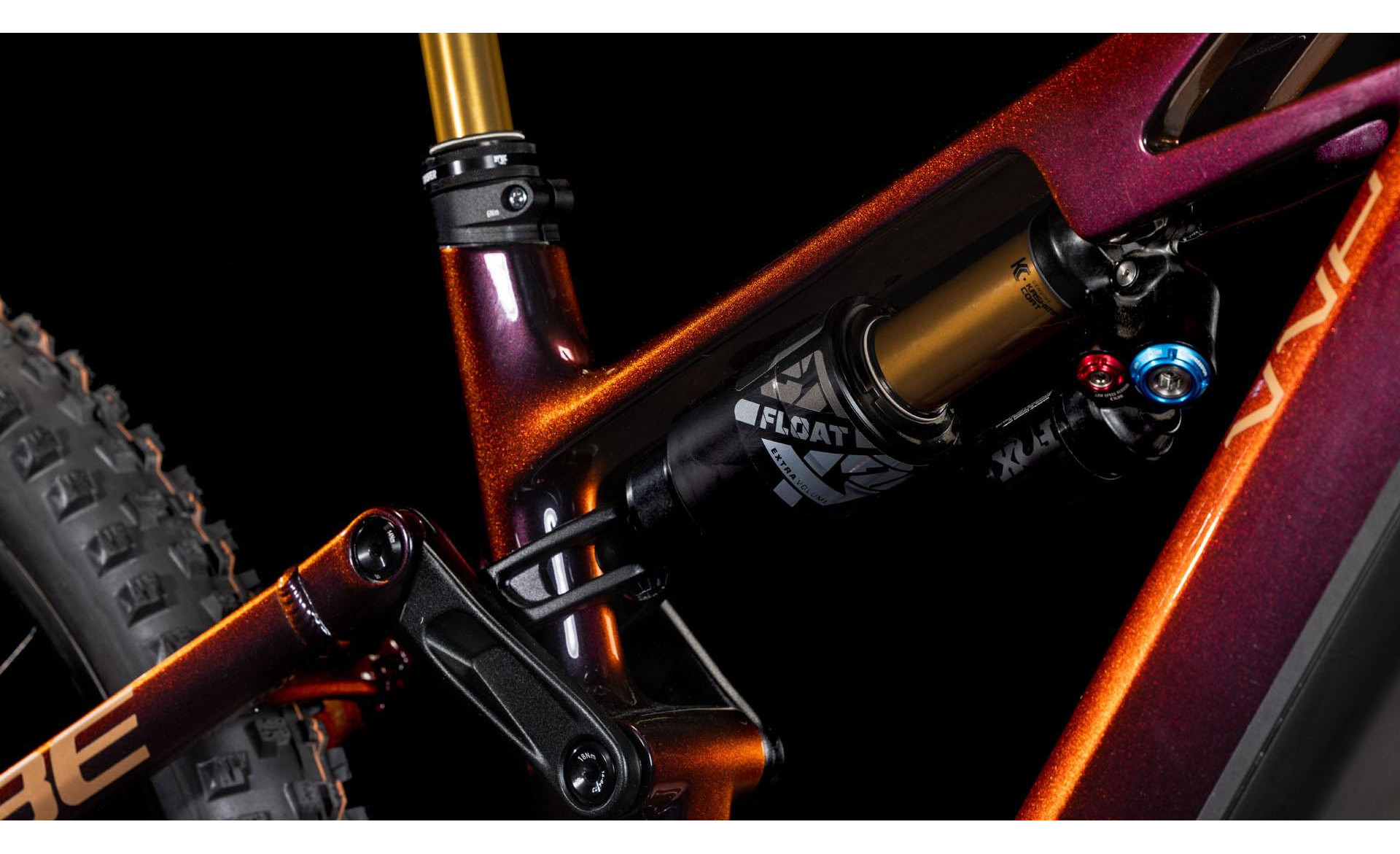

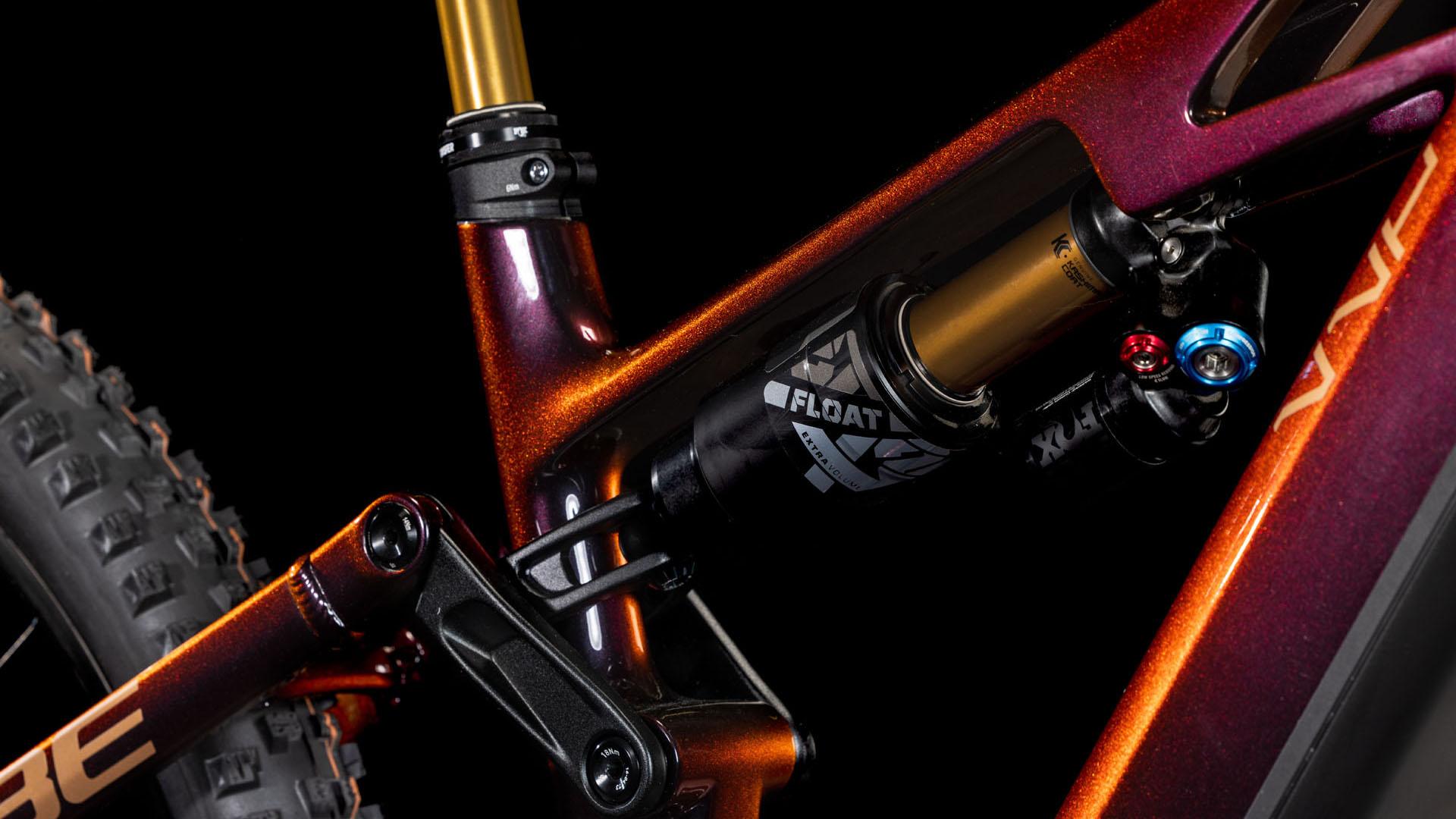

- Amortisseur

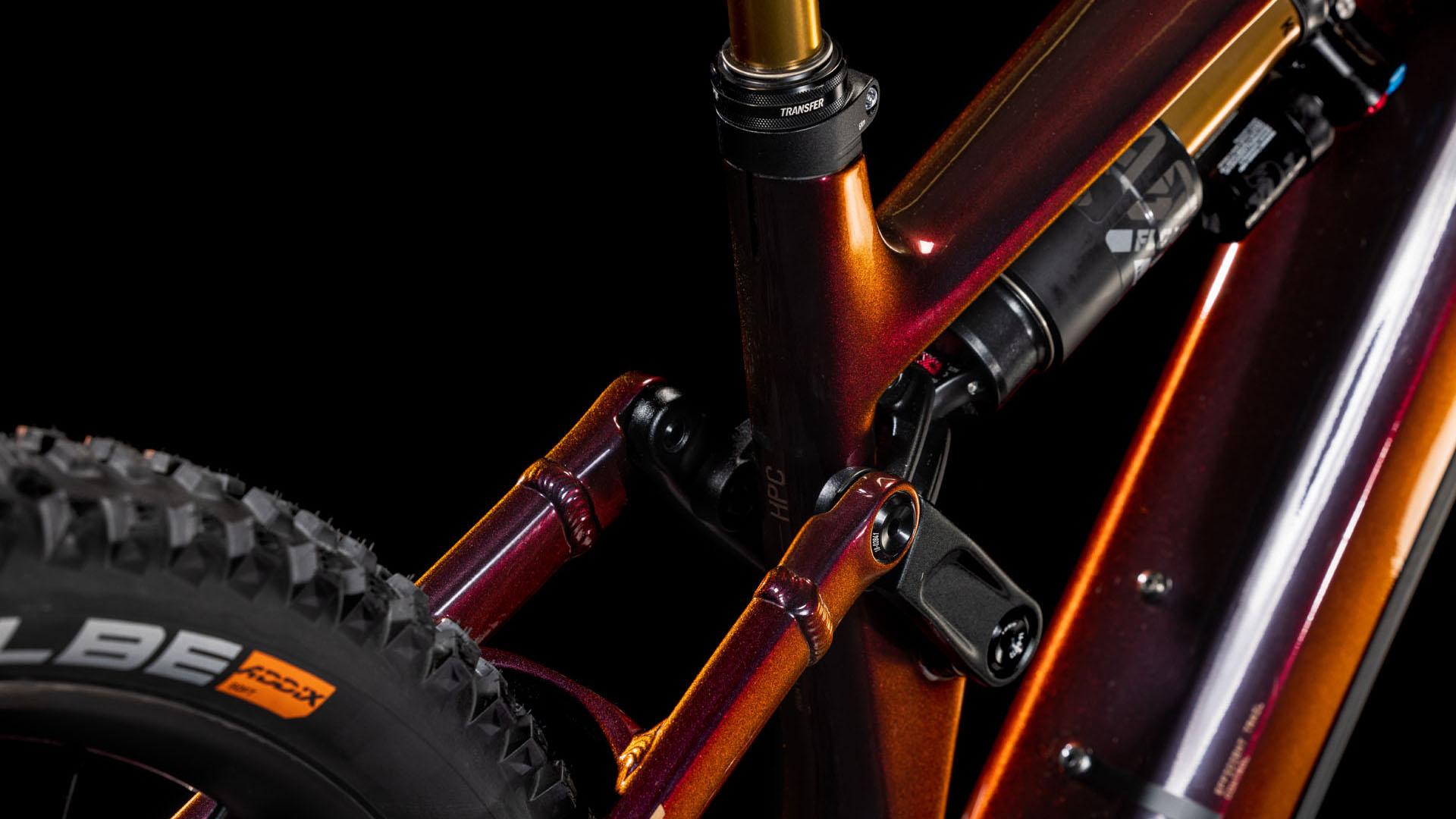

- Fox Float X2 Factory, 230x65mm, High/Low Speed Rebound & Compression w/ 2-Position Lever, Kashima Coated
- Entretoises d’amortisseur
- Front: 30x8mm, Rear: DU-Bushing 12,7mm
Assistance Électrique
- Moteur
- Bosch Drive Unit Performance Line CX 85Nm (BDU38), Smart System
- Batterie
- 800 Wh
Bosch PowerTube 800

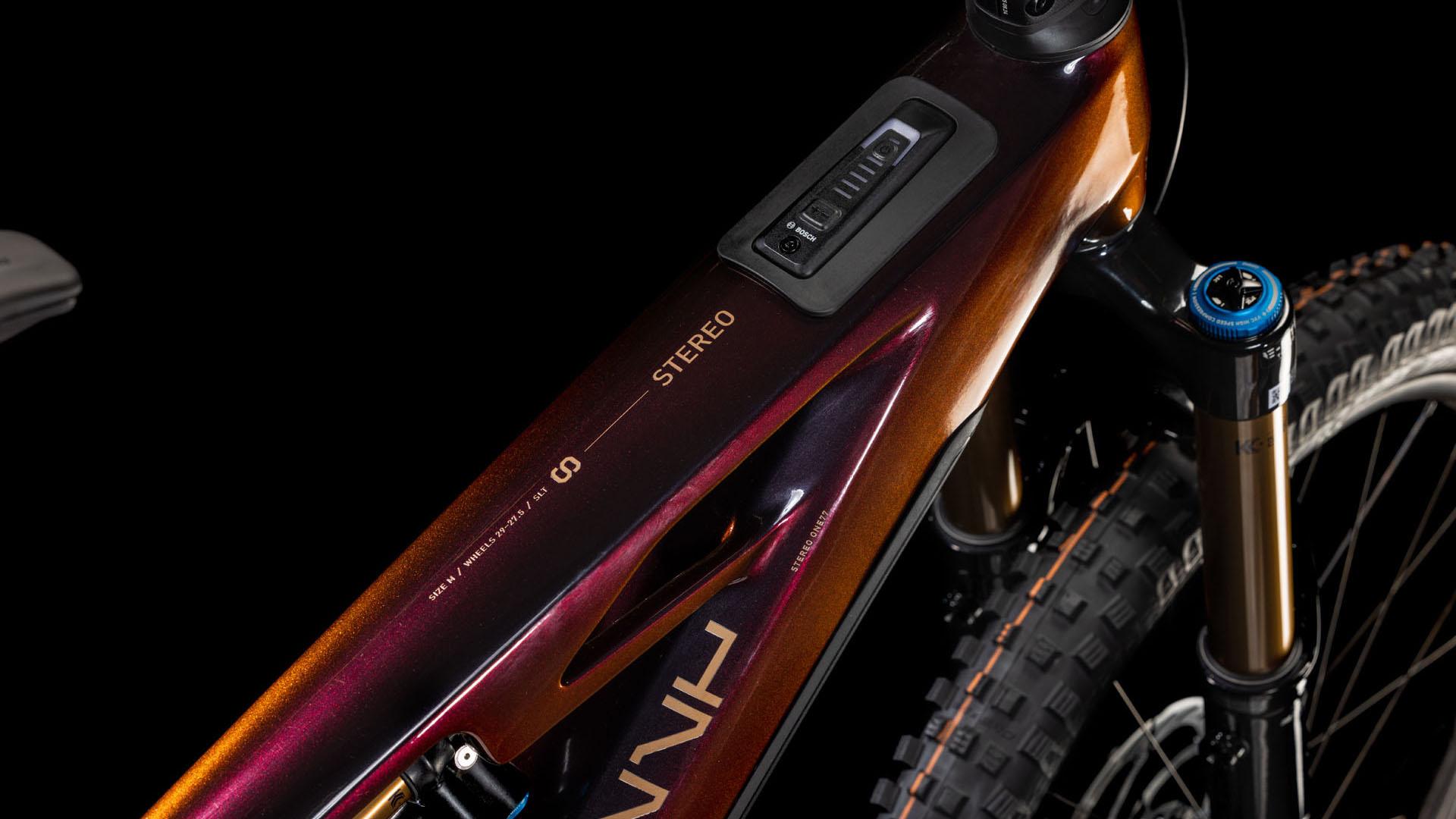

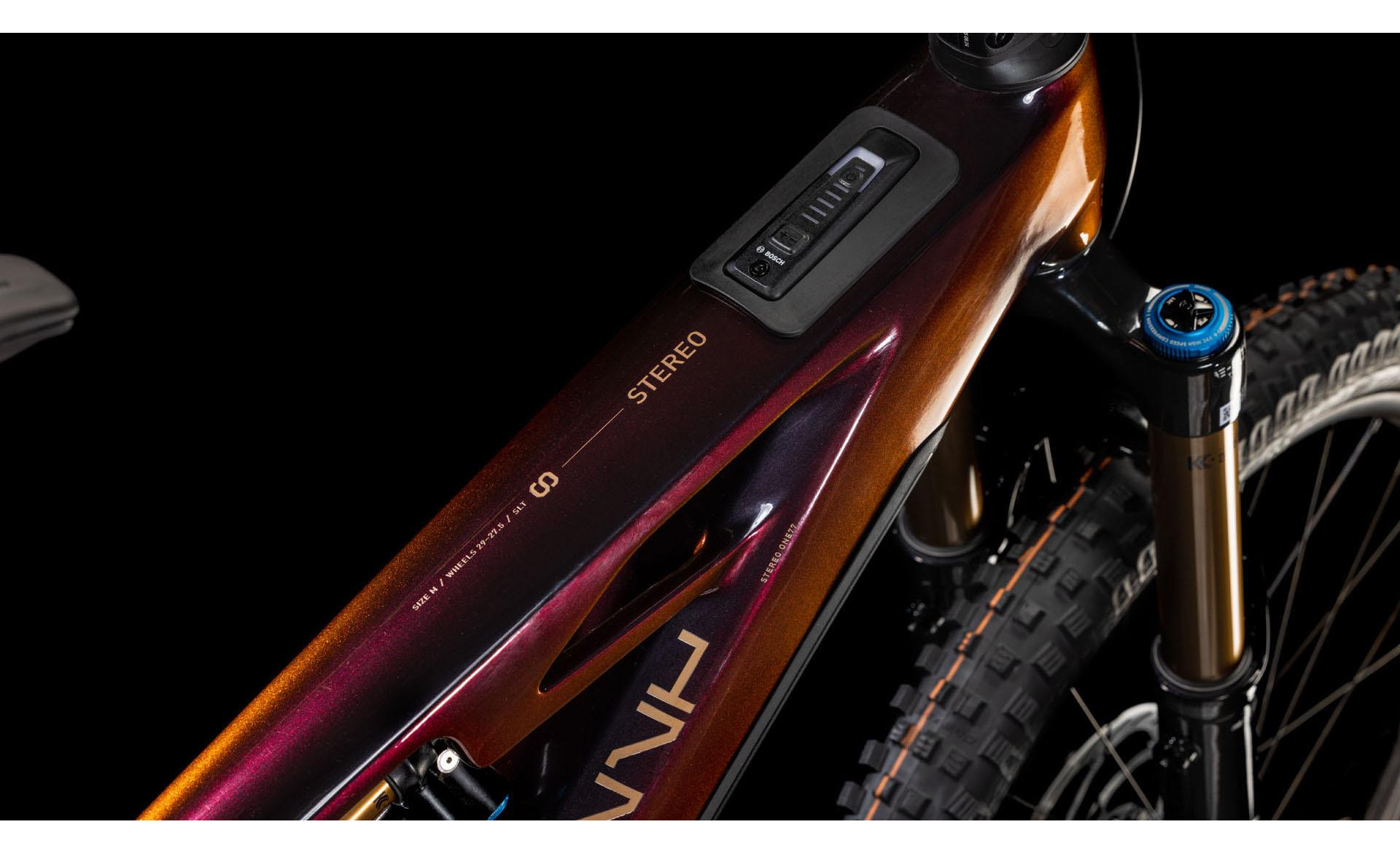

- Écran
- Bosch Purion 400
- Commande
- Bosch System Control, incl. Mini Remote
- Chargeur
- Bosch 4A
Transmission et freinage
- Freins
- Magura Gustav PRO, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
- Commandes
- Sram AXS™ Pod Ultimate Controller

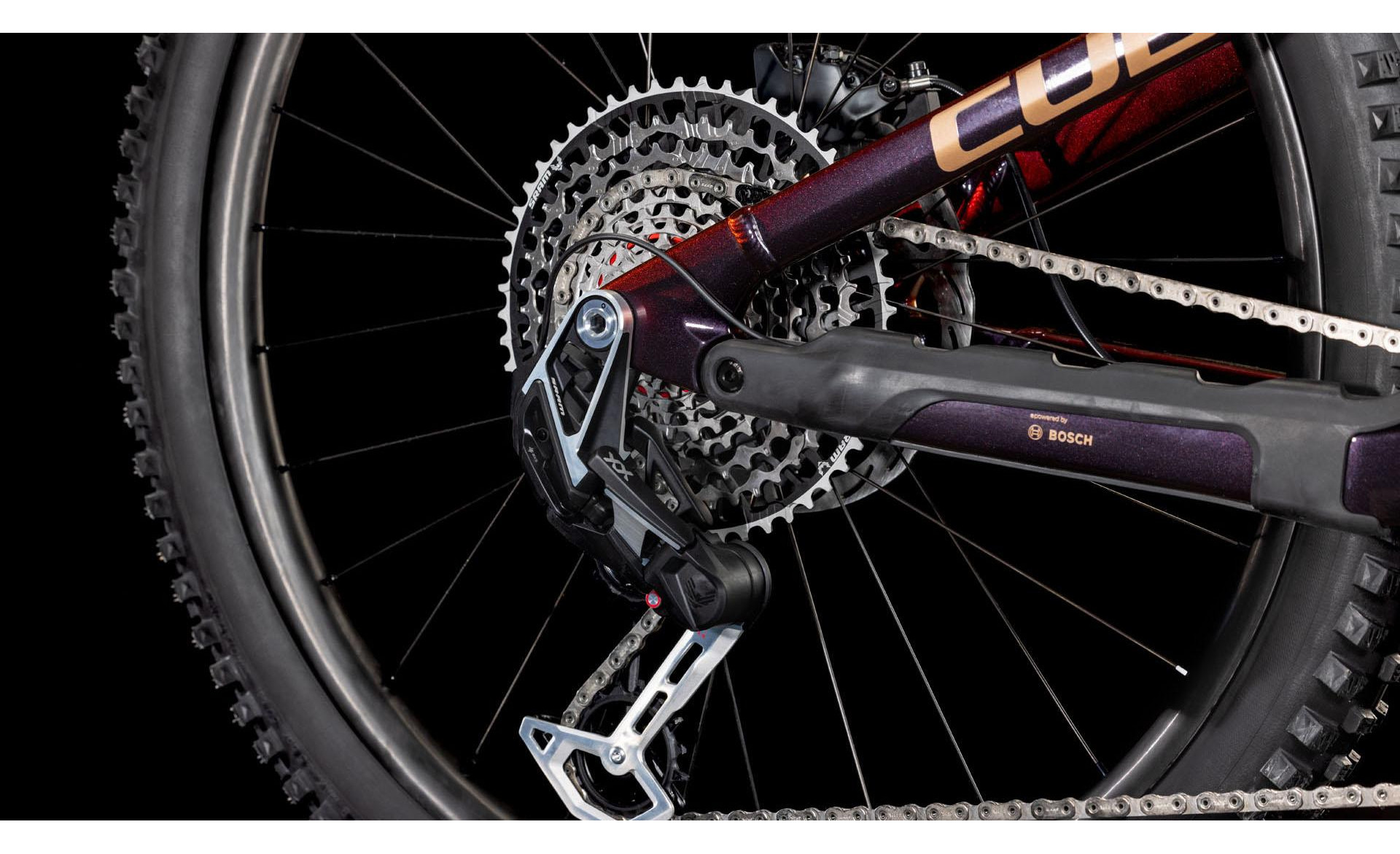

- Dérailleur arrière

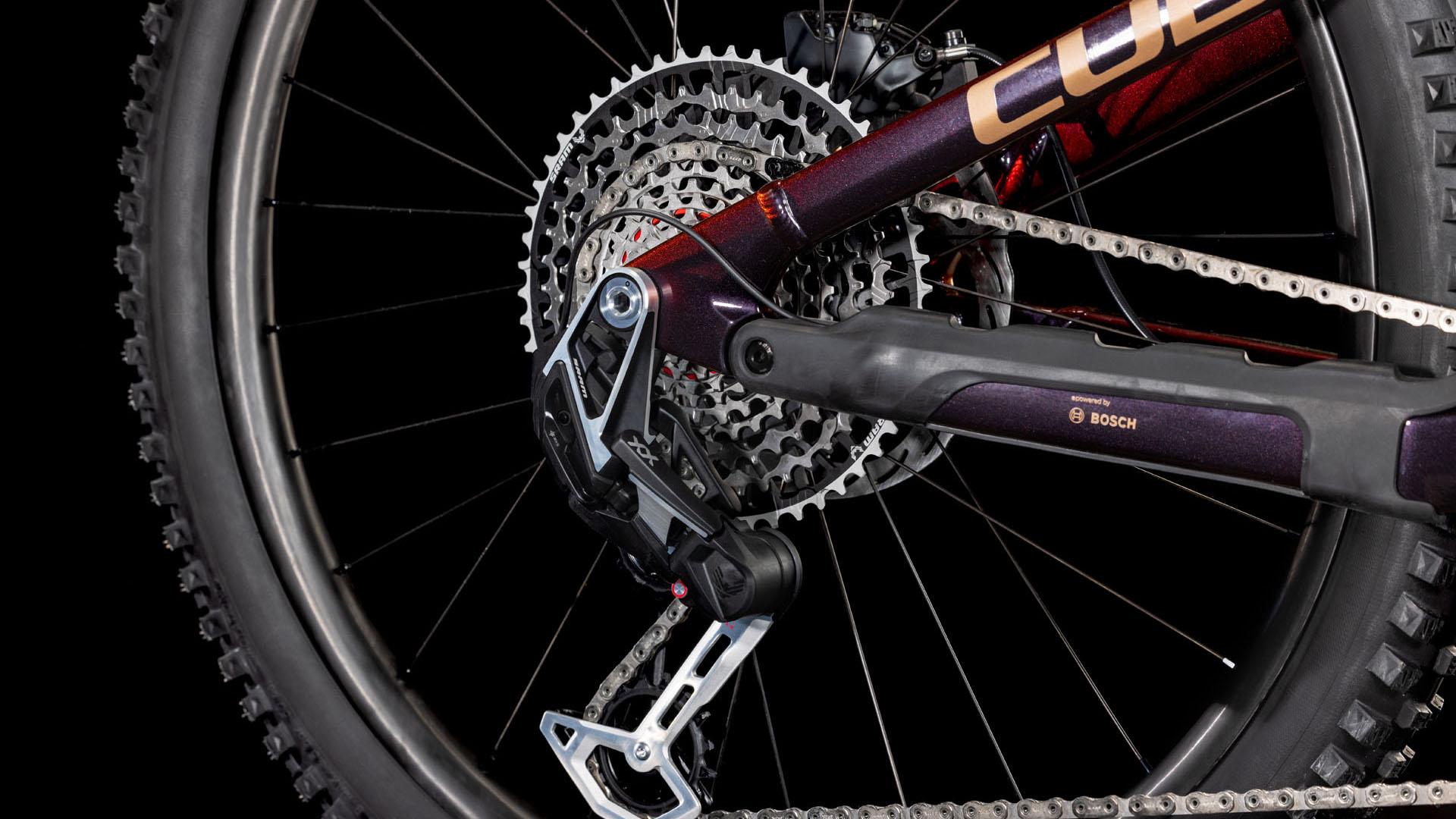

- Sram XX Eagle AXS™ Transmission, 12-Speed, Electronic Shifting System

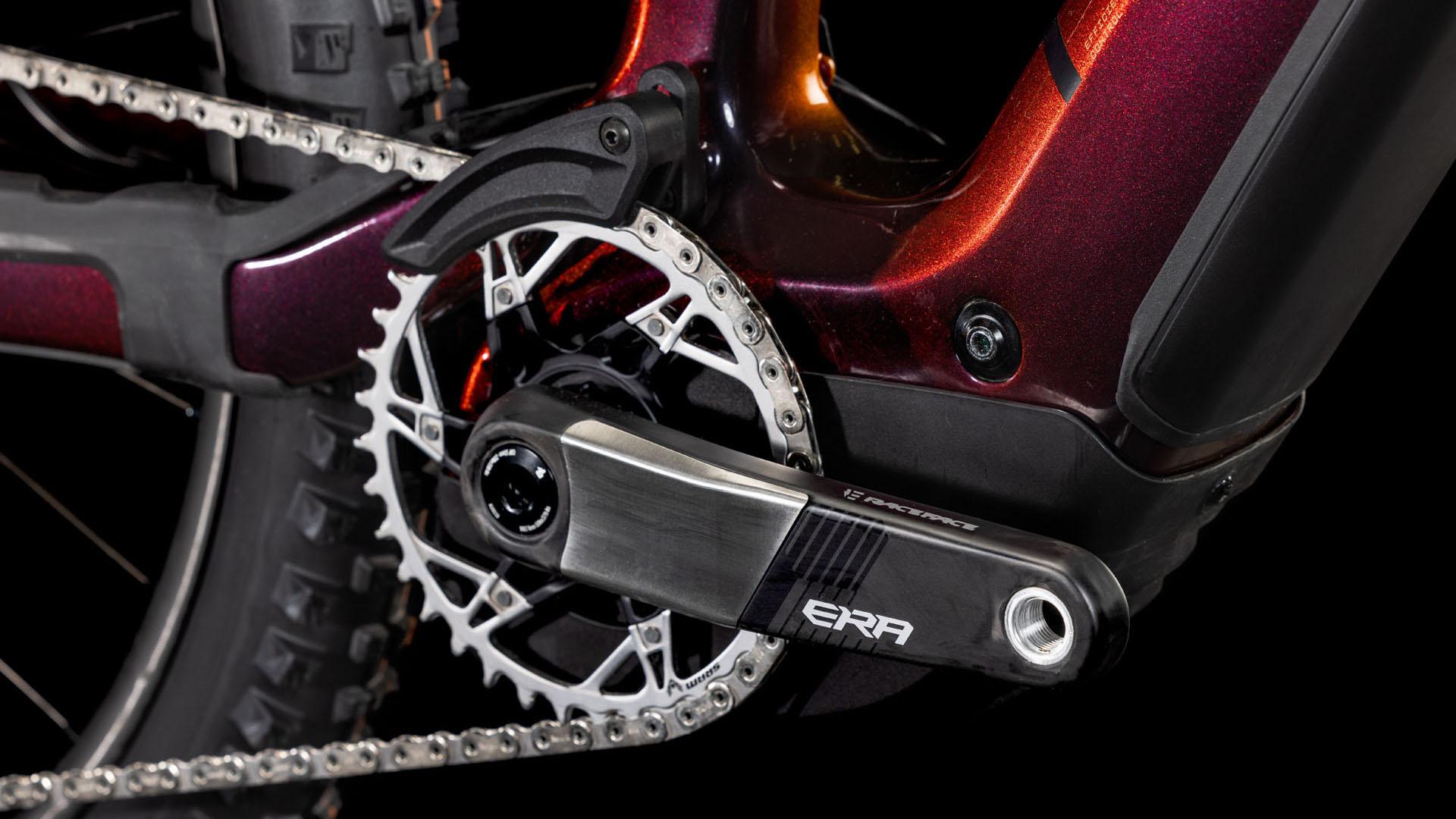

- Pédalier

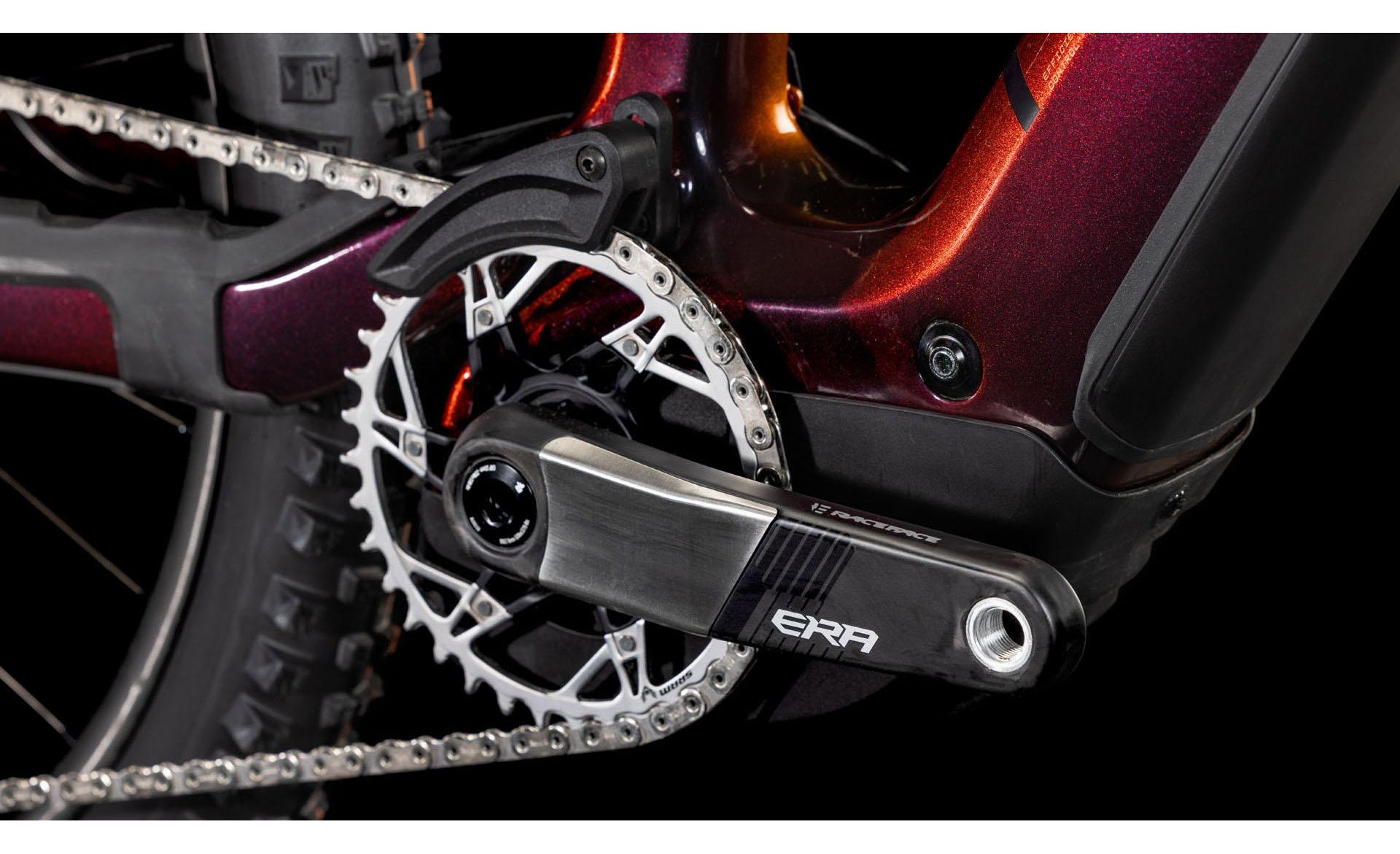

- Race Face ERA E-MTB, 36T
- Guide chaîne
- Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
- Cassette
- Sram XS-1297, 10-52T
- Chaîne
- Sram XX Eagle™ Transmission
Roues
- Roues
- 29" / 27.5"
Newmen Phase 30, 28/28 Spokes (Base/Strong), 15x110mm / 12x148mm, Tubeless Ready
- Pneu avant
- Schwalbe Magic Mary, Addix Soft, Super Trail, Kevlar, 2.4
- Pneu arrière
- Schwalbe Tacky Chan, Addix Soft, Super Gravity, Kevlar, 2.4
Périphériques
- Cintre
- Race Face ERA 35
- Potence
- CUBE Performance Stem E-MTB 35, FPI-Link
- Poignées
- ACID Disrupt, Soft Compound

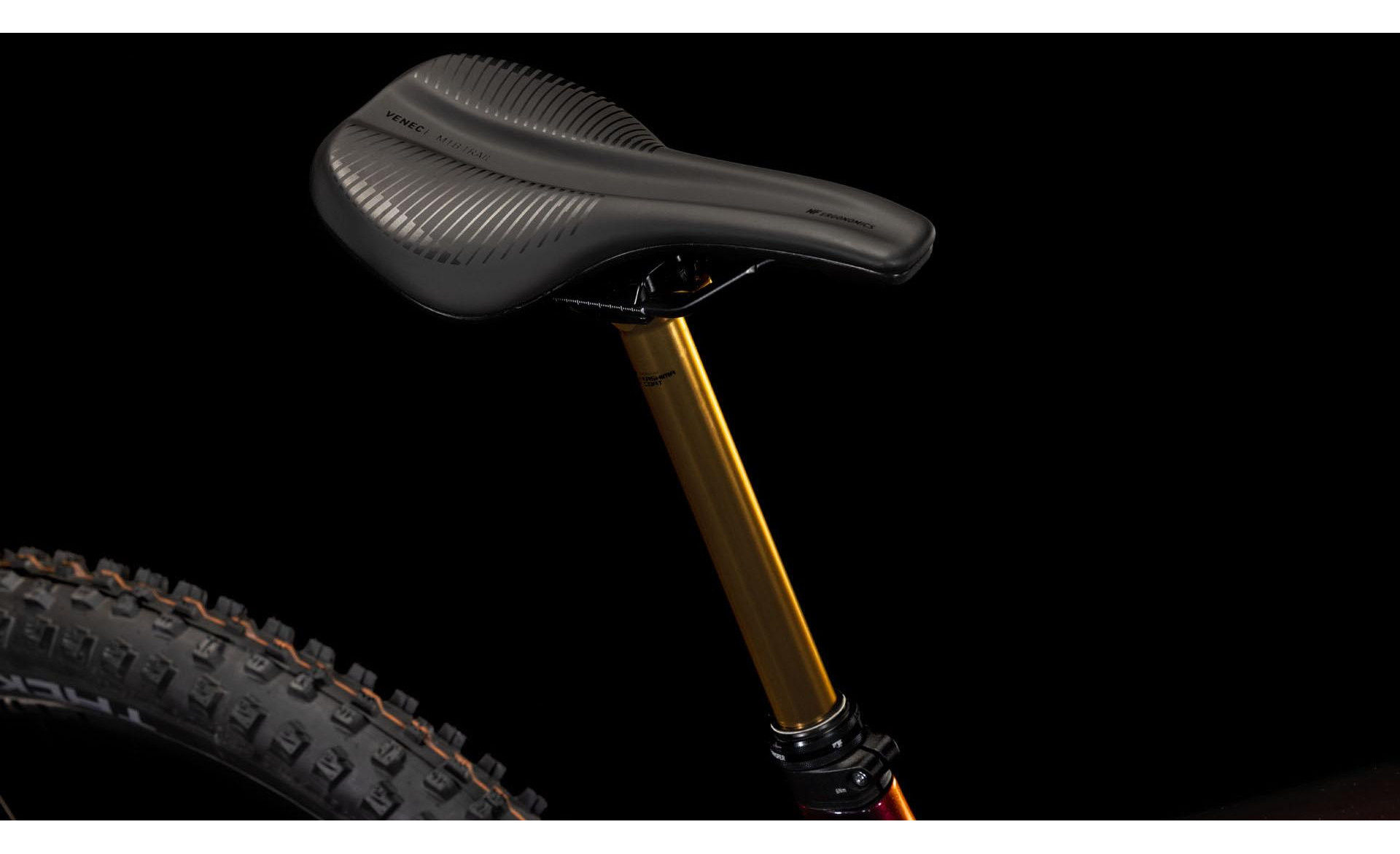

- Selle

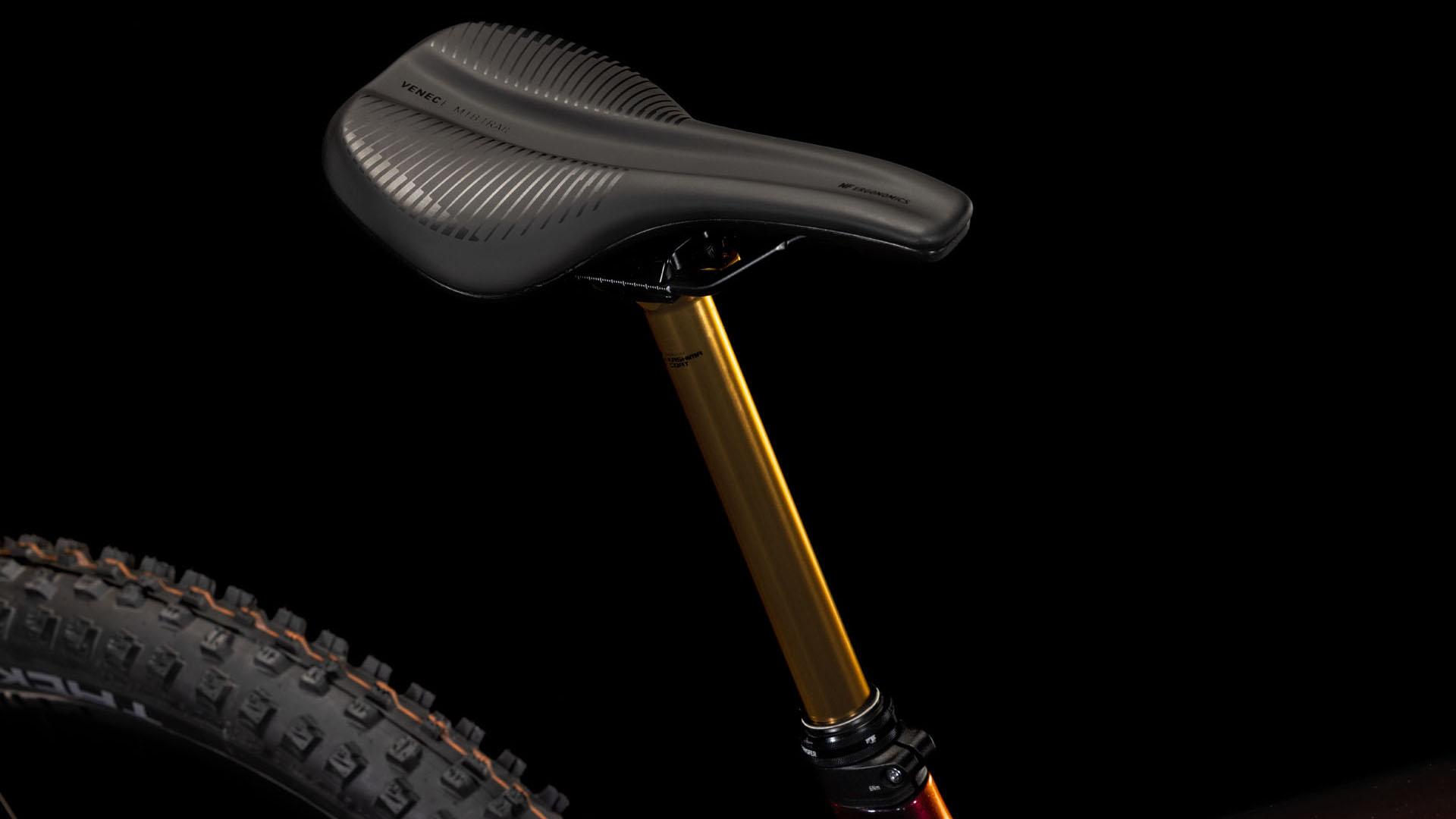

- ACID Venec EMTB Trail 140
- Tige de selle
- Fox Transfer Factory 31.6mm, Kashima Coated
- Jeu de direction
- ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
Accessoires
- En plus
- Schwalbe Aerothan™ Inner Tubes
Poids
- Poids
- 23,5 kg
- Poids maximum du cycliste
- 121 kg
- Poids maximum en charge
- 160 kg
