Cadre
- Cadre

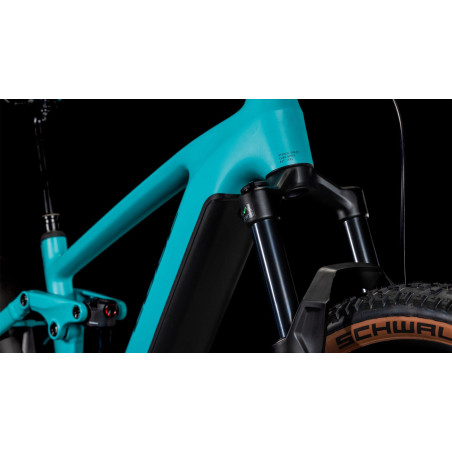

- Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp
- Couleur
- Scubablue´n´black
- Tailles
- Size Split
Suspensions
- Fourche
- RockShox Psylo Silver RC Air, Tapered, 15x110mm, Lockout, 140mm

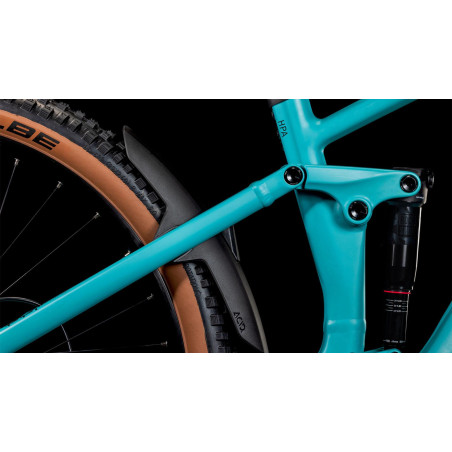

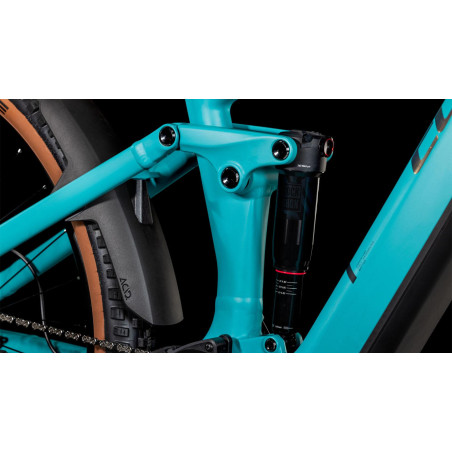

- Amortisseur
- RockShox Deluxe Select R, 205x60mm (27.5: 185x55mm), Rebound Adjust, Trunnion Mount
- Entretoises d’amortisseur
- Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
Assistance Électrique
- Moteur
- Bosch Drive Unit Performance Line CX 85Nm (BDU38), Smart System
- Batterie
- 800 Wh
Bosch PowerTube 800
- Commande
- Bosch Purion 200 w/ Integrated Display
- Chargeur
- Bosch 2A
Transmission et freinage
- Dérailleur arrière
- Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
- Cassette
- Shimano Deore CS-M6100, 10-51T

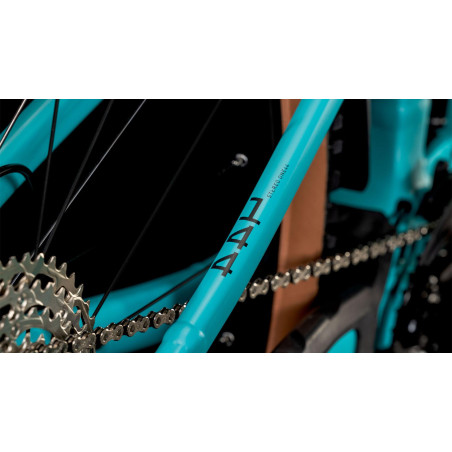

- Chaîne
- KMC e12
Roues
- Jantes
- CUBE EX30, 32H, Disc, Tubeless Ready
- Moyeu avant
- CUBE Engineered By Newmen, 15mm, Boost, Centerlock
- Moyeu arrière
- CUBE Engineered By Newmen, 12mm, Boost, Centerlock
- Pneus
- Schwalbe Nobby Nic, Performance, 2.6
Périphériques
- Cintre
- CUBE Rise Trail Bar 35
- Potence
- CUBE Performance Stem E-MTB 35, FPI-Link
- Poignées
- ACID Hybrid Perform
- Selle
- ACID Venec EMTB Plus 145
- Tige de selle
- CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
- Jeu de direction
- ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Accessoires
- Pédales
- ACID PP MTB
Poids
- Poids
- 26,6 kg
- Poids maximum du cycliste
- 120 kg
- Poids maximum en charge
- 150 kg
